  • USRP B205mini-i

    785888-01 | USRP B205MINI-I (1X1, 70 MHZ – 6 GHZ) – ETTUS RESEARCH $ 1,700.00 USD

    The USRP™ B205mini-i delivers a 1×1 SDR/cognitive radio in the size of a business card.

    Overview

    The USRP™ B205mini-i delivers a 1×1 SDR/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable, industrial-grade Xilinx Spartan-6 XC6SLX150 FPGA, this flexible and compact platform is ideal for both hobbyist and OEM applications. The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B205mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. The USRP Hardware Driver™ (UHD) software API supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand.

    Features

    • Wide frequency range: 70 MHz – 6 GHz
    • Up to 56 MHz of instantaneous bandwidth
    • Full duplex operation
    • User-programmable, industrial-grade Xilinx Spartan-6 XC6SLX150 FPGA
    • Fast and convenient bus-powered USB 3.0 connectivity
    • Synchronization with 10 MHz clock reference or PPS time reference
    • GPIO and JTAG for control and debug capabilities
    • 83.3 x 50.8 x 8.4 mm form factor
    • USRP Hardware Driver™ (UHD) open-source software API version 3.9.2 or later
    • GNU Radio support maintained by Ettus Research™ through GR-UHD, an interface to UHD distributed by GNU Radio

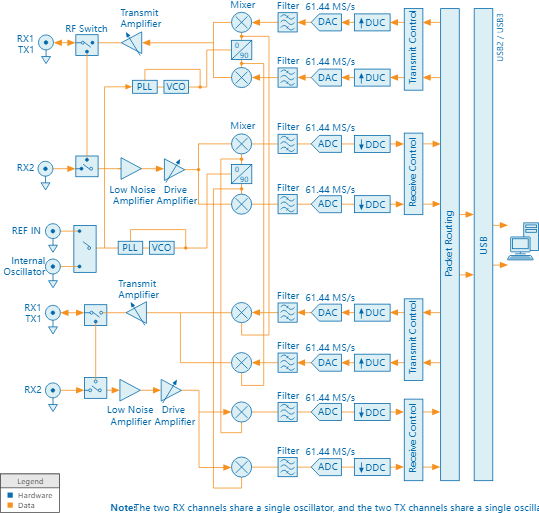

    Block Diagram

    Additional Resources

    Included in This Kit:

    • USRP B205mini-i
    • USB 3.0 cable
    • Getting Started Guide

    Quotes and Sales

    Email：sales@tekdf.com

    Wechat：dftech_info

  • NI USRP Price

    NI编号得定价

    型号描述未含税含税
    USRP-290070 MHz ~ 6 GHz ，单通道，USB接口1533517328.55
    USRP-290170 MHz ~ 6 GHz ，双通道，USB接口2245525374.15
    USRP-294410 MHz ~ 6 GHz，双通道， 160 MHz带宽，万兆网口，PCIe口127650144244.5
    USRP-294510 MHz ~ 6 GHz，四通道， 80 MHz带宽，万兆网口，PCIe口，相位相干170855193066.15
    USRP-295410 MHz ~ 6 GHz，双通道， 160 MHz带宽，万兆网口，PCIe口，GPSDO140525158793.25
    USRP-295510 MHz ~ 6 GHz，四通道， 80 MHz带宽，万兆网口，PCIe口，相位相干，GPSDO195830221287.9
    USRP-2974高性能嵌入式SDR，X86处理器，10 MHz-6 GHz，160 MHz带宽，双通道，GPSDO187660212055.8
    Ettus USRP X4101 MHz ~ 7.2 GHz，四通道，400 MHz带宽，100G 网口，PCIe口，GPSDO238655269680.15
    Ettus USRP X44030 MHz ~ 4 GHz，八通道，1600 MHz带宽，100G 网口，PCIe口，GPSDO218305246684.65
    CDA-2990G八通道，10MHz时钟分配设备2783531453.55

    Ettus编号定价

    Ettus被NI收购之后，Ettus所有的型号都会在NI的系统中重新编号，价格会有所提升。

    型号描述未含税含税价格
    B200mini70 MHz ~ 6 GHz ，单通道，USB接口1086512277.45
    B200mini-i工业级，70 MHz ~ 6 GHz ，单通道，USB接口1253514164.55
    B205mini-i工业级，70 MHz ~ 6 GHz ，单通道，USB接口1269514345.35
    B20070 MHz ~ 6 GHz ，单通道，USB接口，可配GPSDO1057011944.1
    B21070 MHz ~ 6 GHz ，双通道，USB接口，可配GPSDO1726019503.8
    B200mini外壳外壳550621.5
    B205mini外壳外壳15851791.05
    B200/B210外壳外壳12101367.3
    X310母板（不含子板），万兆网口，PCIe口7680086784
    UBX16010 MHz ~ 6 GHz，单通道， 160 MHz带宽1791520243.95
    X310+1*UBX16010 MHz ~ 6 GHz，单通道， 160 MHz带宽，万兆网口，PCIe口94715107027.95
    X310+2*UBX16010 MHz ~ 6 GHz，双通道， 160 MHz带宽，万兆网口，PCIe口112630127271.9
    OBX16010 MHz ~ 8.4 GHz，单通道， 160 MHz带宽1859521012.35
    X310+2*OBX16010 MHz ~ 8.4 GHz，双通道， 160 MHz带宽，万兆网口，PCIe口113990128808.7
    TCXOGPSDO模块，适用于B200，B2101006011367.8
    OCXOGPSDO模块，适用于X310，X3001515117120.77
    E32010 MHz ~ 6 GHz，双通道， 56MHz带宽，万兆网口6841077303.3
    N3203 MHz ~ 6 GHz，双通道， 200 MHz带宽，万兆网口，QSFP+161285182252.05
    N3213 MHz ~ 6 GHz，双通道， 200 MHz带宽，万兆网口，QSFP+181420205004.6
    N30010 MHz ~ 6 GHz，双通道， 100 MHz带宽，万兆网口92070104039.1
    N31010 MHz ~ 6 GHz，四通道， 100 MHz带宽，万兆网口141615160024.95
