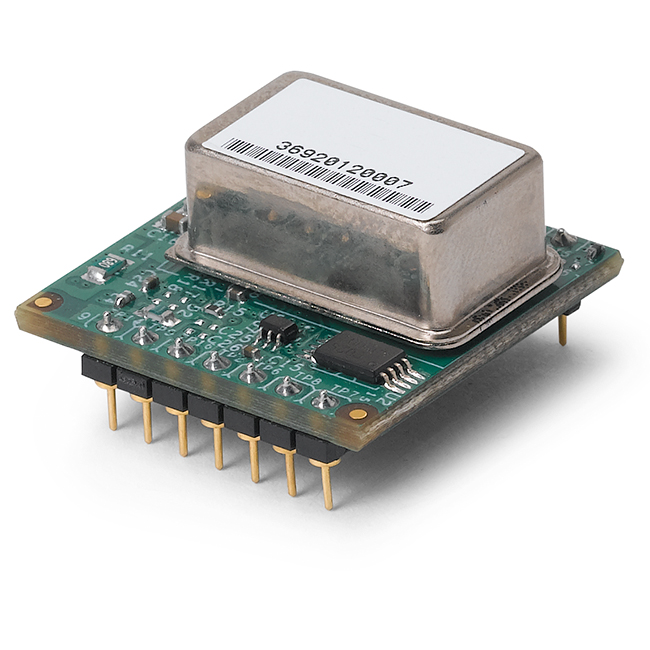

  • Board Mounted GPSDO (TCXO) Recommended for USRP B200/B210

    783454-01 | BOARD MOUNTED GPSDO KIT (PCB-MOUNTED GPS-DISCIPLINED TCXO)  $ 1,362.00 USD

    This is a GPS-disciplined, temperature-controlled crystal oscillator (GPSDO), which is recommended for use with a USRP B200/B210.  The GPSDO provides a high-accuracy 10 MHz reference and 1 PPS signal, which allows developers to build systems that serve applications with improved frequency accuracy (75 ppb in unlocked condition) or global timing alignment (50 ns in locked condition).

    Overview

    This is a GPS-disciplined, temperature-controlled crystal oscillator (GPSDO), which is recommended for use with a USRP B200/B210.  The GPSDO provides a high-accuracy 10 MHz reference and 1 PPS signal, which allows developers to build systems that serve applications with improved frequency accuracy (75 ppb in unlocked condition) or global timing alignment (50 ns in locked condition).

    Unlike the OCXO-based version, which is recommended for use with the USRP X300/X310, this lower power module can be used with the USRP B200/B210 in a USB bus-powered configuration.

    We recommend reading the GPSDO Selection Guide to ensure this is the right device for your application.

    Module Specifications
    1 PPS Accuracy±50ns to UTC RMS (1-Sigma) GPS Locked
    1 PPS Output3.3VDC CMOS
    RS-232 ControlNMEA & SCPI-99 Control Commands, Integrated into UHD
    GPS FrequencyL1, C/A 1574MHz
    GPS AntennaActive (5V compatible) or Passive
    GPS Receiver50 Channels, Mobile, WAAS, EGNOS, MSAS capable
    SensitivityAcquisition -142dBm, Tracking -168dBm
    TTFFCold Start: <45 sec, Warm Start: 1 sec, Hot Start: 1 sec
    ADEV1E-11 at 1s
    Warm Up Time / Stabilization Time<5 min at +25C to 1E-08 Accuracy
    Supply Voltage (Vdd)3.3V
    Power Consumption0.5W Max
    Operating Temperature0C to +60C
    Storage Temperature-45C to 85C
    Oscillator Specifications
    Frequency Output10MHz
    10MHz Retrace±2E-08 after 1 hour at 25C
    Frequency Stability Over Temperature (Unlock Condition)±7.5E-08
    Warm Up Time< 1 min at +25C
    Phase Noise at 10MHz1Hz-65dBc/Hz
    10Hz-102dBc/Hz
    100Hz-132dBc/Hz
    10kHz<-152dBc/Hz

    Additional Resources

    Kit Contents:

    • Board-Mounted GPSDO (TCXO)
    • Documentation for Installation and Configuration/Setup

    Recommended for Use With:

    • A USRP B200/B210 for a high-accuracy clock reference that can be used in a bus-powered configuration.
    • Add a GPSDO Mini GPS (5V) Antenna to synchronize the GPSDO to the GPS constellation for 75 ppb frequency accuracy and 50 ns alignment across the globe.

    Quotes and Sales

    Email:sales@tekdf.com

    Wechat:dftech_info

  • 用于 USRP B200/B210 的板载 GPSDO (TCXO)

    简介

    板载 GPSDO 套件(PCB 板载 GPS 校准 TCXO)

    这是一款 GPS 校准的温控晶体振荡器 (GPSDO),建议与 USRP B200/B210 配合使用。GPSDO 提供高精度 10 MHz 参考频率和 1 PPS 信号,使开发人员能够构建具有更高频率精度(解锁条件下 75 ppb)或全局时序校准(锁定条件下 50 ns)的应用系统。

    这是一款 GPS 驯服温控晶振模块(GPSDO),推荐用于 USRP B200/B210 系列设备。该模块可输出高精度的 10 MHz 参考频率和 1 PPS 时间信号,使开发者能够构建具备更高频率精度(在未锁定状态下达 75 ppb)或全球时间对齐能力(在锁定状态下精度约 ±50 ns)的系统。

    与基于 OCXO 的版本不同(该版本更适用于 USRP X300/X310),此款 GPSDO 模块功耗较低,可在 USB 总线供电条件下直接与 USRP B200/B210 配合使用,无需外部电源。

    模块规格(Module Specifications)

    1 PPS 时间精度

    • ±50 ns(RMS,1σ,相对于 UTC,GPS 锁定状态)

    1 PPS 输出

    • 3.3 V CMOS 电平

    控制接口

    • RS-232 串口控制
    • 支持 NMEASCPI-99 控制命令,已集成于 UHD 驱动

    GPS 接收参数

    • 频率:L1, C/A 1574 MHz
    • 天线接口:支持有源(兼容 5 V)与无源天线
    • 接收通道数:50 通道,支持移动、WAAS、EGNOS、MSAS
    • 灵敏度
      • 捕获(Acquisition):–142 dBm
      • 跟踪(Tracking):–168 dBm
    • 首次定位时间(TTFF)
      • 冷启动:<45 秒
      • 暖启动:1 秒
      • 热启动:1 秒

    频率稳定性

    • Allan 偏差(ADEV):1×10⁻¹¹ @ 1 秒
    • 稳定时间:<5 分钟(+25 °C 条件下达到 1×10⁻⁸ 精度)

    电气与环境参数

    • 供电电压(Vdd):3.3 V
    • 功耗:最大 0.5 W
    • 工作温度范围:0 °C ~ +60 °C
    • 存储温度范围:–45 °C ~ +85 °C

    晶振规格(Oscillator Specifications)

    频率输出

    • 10 MHz

    10 MHz 频率回退(Retrace)

    • ±2 × 10⁻⁸(断电 1 小时后,在 +25 °C 条件下)

    温度频率稳定性

    • ±7.5 × 10⁻⁸(在未锁定 GPS 情况下)

    预热时间(Warm-Up Time)

    • 小于 1 分钟(+25 °C 环境下)

    相位噪声(Phase Noise)@ 10 MHz

    偏移频率相位噪声
    1 Hz–65 dBc/Hz
    10 Hz–102 dBc/Hz
    100 Hz–132 dBc/Hz
    10 kHz<–152 dBc/Hz

    USRP兼容产品

    套件包含(Kit Contents):

    • 板载式 GPSDO 模块(基于 TCXO)
    • 安装与配置使用文档

    推荐使用场景(Recommended for Use With):

    • USRP B200/B210 搭配使用,为其提供高精度时钟参考,且可在 USB 总线供电配置下正常运行
    • 可搭配 GPSDO Mini GPS(5V)天线,使 GPSDO 同步至 GPS 星座,从而实现 75 ppb 频率精度全球 ±50 ns 时间对齐

    选购

    美金价格$1,300.00 USD
    人民币价格(含税)¥11,752 RMB
